Markerless Motion Capture with Unsynchronized Moving Cameras

Nils Hasler, Bodo Rosenhahn, Thorsten Thormählen, Michael Wand, Juergen Gall, and Hans-Peter Seidel

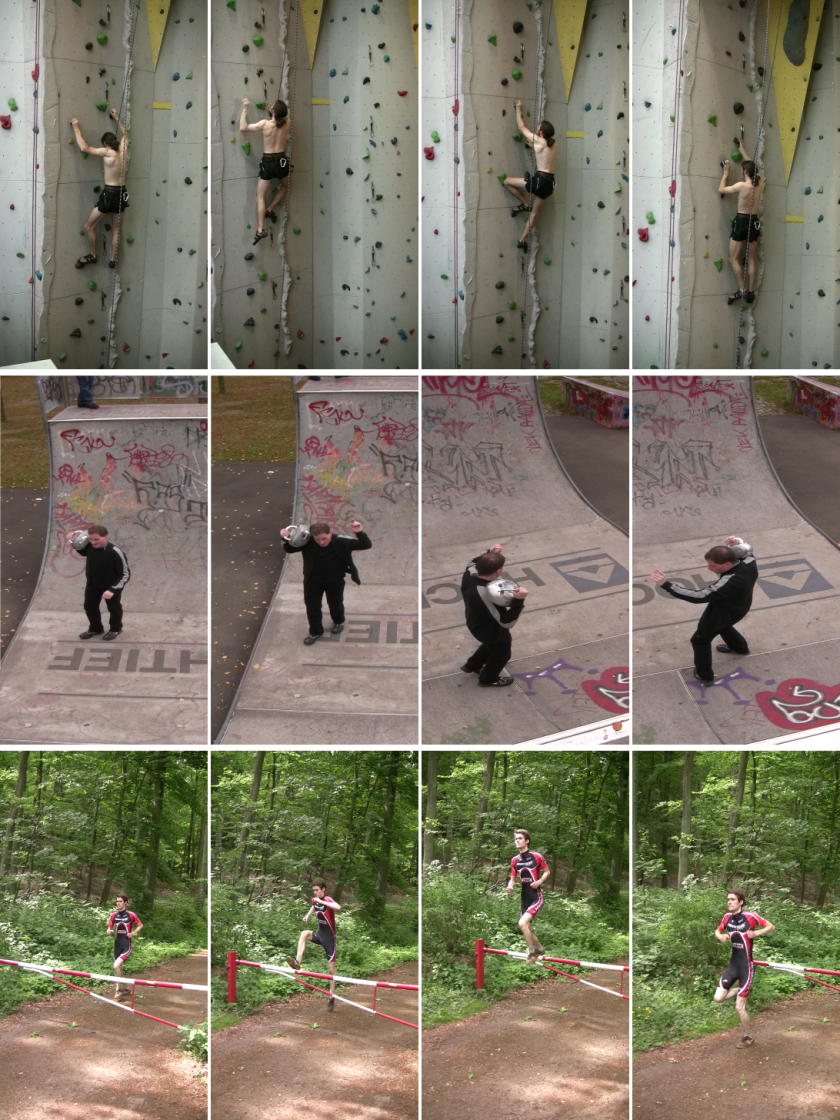

In this work we present an approach for markerless motion capture (MoCap) of articulated objects, which are recorded with multiple unsynchronized moving cameras. Instead of using fixed (and expensive) hardware synchronized cameras, this approach allows us to track people with off-the-shelf handheld video cameras. To prepare a sequence for motion capture, we first reconstruct the static background and the position of each camera using Structure-from-Motion (SfM). Then the cameras are registered to each other using the reconstructed static background geometry. Camera synchronization is achieved via the audio streams recorded by the cameras in parallel. Finally, a markerless MoCap approach is applied to recover positions and joint configurations of subjects. Feature tracks and dense background geometry are further used to stabilize the MoCap. The experiments show examples with highly challenging indoor and outdoor scenes.

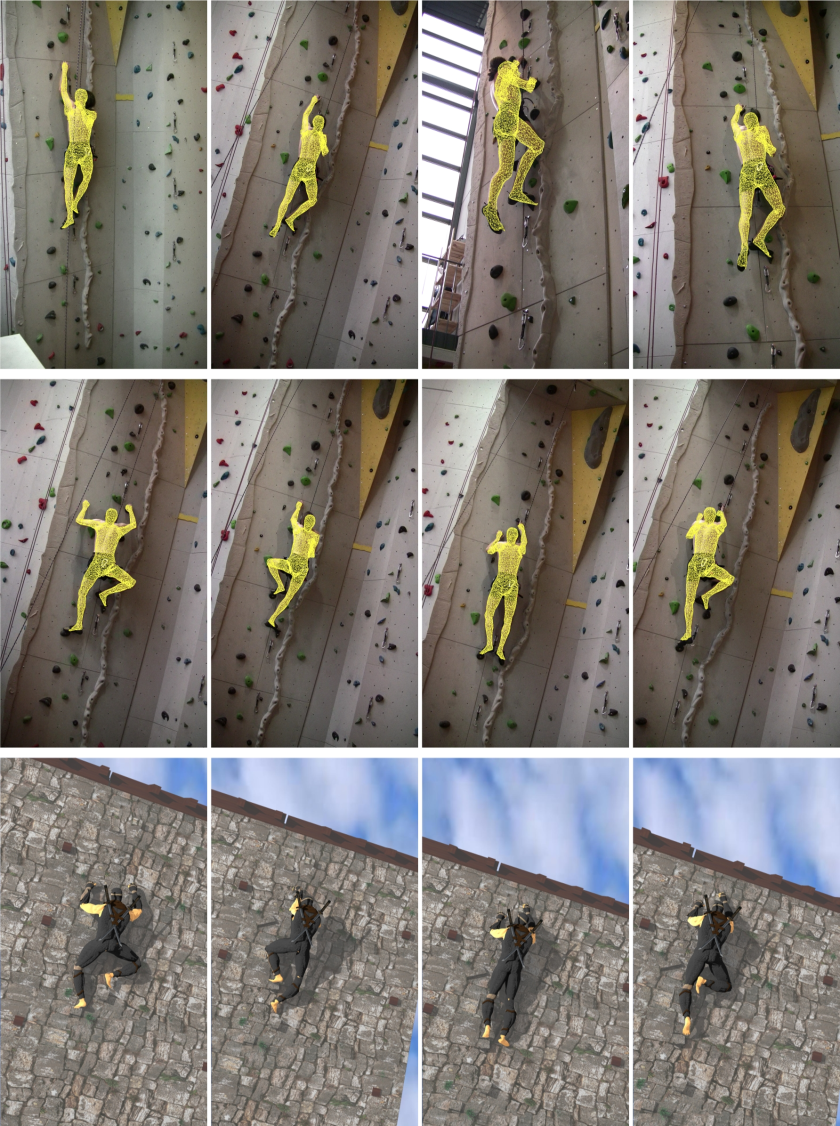

Results for indoor-climbing. Video ~20MB (AVI).


Data is available at TNT, Hannover University


Hasler N., Rosenhahn B., Thormählen T., Wand M., Gall J., and Seidel H.-P., Markerless Motion Capture with Unsynchronized Moving Cameras ( PDF ), IEEE Conference on Computer Vision and Pattern Recognition (CVPR'09), 2009. © IEEE
